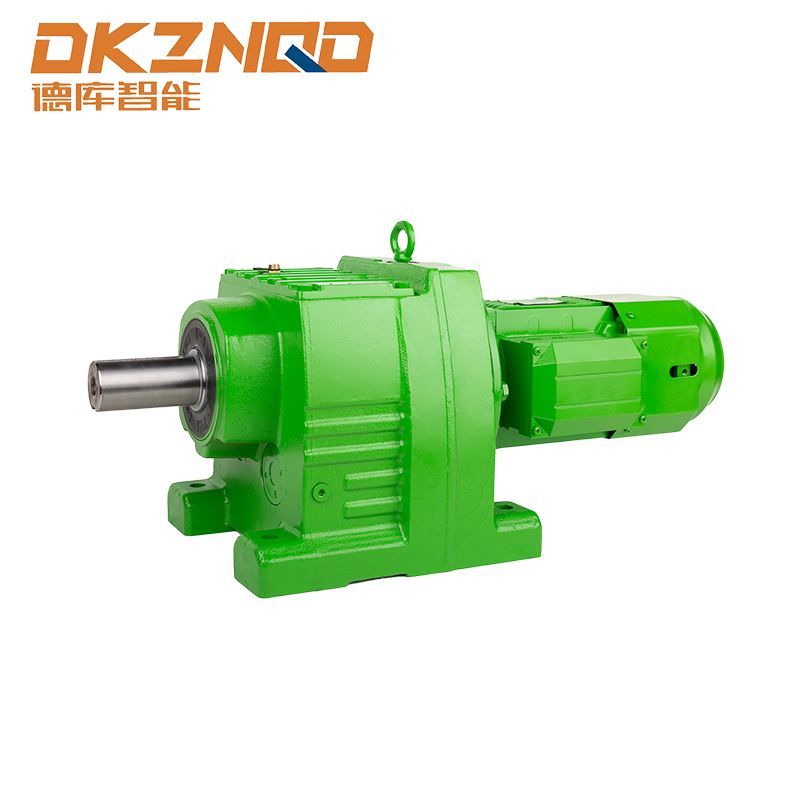

Analysis of the Technical Characteristics of the R Series Helical Geared Motor

As a key equipment in the field of industrial transmission, the core advantage of the R series helical geared motor comes from the in-depth application of helical gear transmission technology. Compared with spur gear transmission, the tooth surface of the helical gear is spiral, which has a larger contact area during the meshing process, and the contact point will gradually move along the tooth surface. This progressive meshing method effectively reduces the impact and vibration during the transmission process and achieves low-noise operation. In terms of load-bearing capacity, the R series helical geared motor optimizes the gear helix angle and tooth width design so that the gear can disperse the stress more evenly when transmitting torque, avoiding damage to components caused by excessive local force.

Explanation of the working principle of the helical gear reduction motor
The deceleration function of the R series helical geared motor is realized based on the mechanical transmission principle of gear meshing. Its core transmission structure consists of a helical gear set on the input shaft and the output shaft. When the motor drives the input shaft to rotate at high speed, the helical gear on the input shaft forms a precise meshing with the helical gear on the output shaft. Due to the difference in the number of teeth of the two gears, the high-speed rotating input shaft power is converted into the low-speed rotating output shaft power through the force transmission between the teeth, thereby achieving a deceleration effect. ​In this process, the spiral design of the helical gear ensures the continuity of power transmission, and replaces part of the sliding friction with the rolling friction between the tooth surfaces, reducing energy loss and improving transmission efficiency. The entire power transmission process does not require complex auxiliary devices and is completely completed by the precise coordination of the mechanical structure. ​

Material and process guarantee of helical gear reduction motors ​
The gear assembly of the reduction motor uses high-strength alloy steel as the basic material. This material itself has excellent mechanical properties and provides a material basis for the gear to withstand high-load transmission. During the manufacturing process, the gears need to undergo multiple precision machining processes, including CNC turning, grinding, etc., to ensure that the gear tooth profile accuracy and pitch error are controlled within a very small range, thereby ensuring the accuracy of the meshing. ​After processing, the gears need to undergo a strict heat treatment process. Through quenching, tempering and other processes, a high hardness layer is formed on the surface of the gears, while the core maintains a certain toughness. This treatment method significantly improves the wear resistance of the gears, enabling them to resist the wear caused by long-term meshing, and also enhances the anti-fatigue performance of the gears, effectively extending their service life. The motor housing and other structural parts are also made of high-quality cast iron or alloy materials. After aging treatment, internal stress is eliminated to ensure that they will not deform during long-term operation. ​

Selection and installation adaptation of helical gear reduction motors
R series helical geared motors provide a wide range of model options to meet the transmission needs in different industrial scenarios. During the selection process, the core basis is the input power and required output torque of the equipment. By matching the model with the corresponding parameters, the reduction motor can be ensured to operate under the best working conditions to avoid performance degradation caused by overload or insufficient power. This series of products also takes into account the structural characteristics of different equipment and designs a variety of installation methods, including flange installation, foot installation, etc., which can flexibly adapt to the layout requirements of various mechanical equipment. ​When selecting and adapting, in addition to the basic power and torque parameters, factors such as the operating speed, working environment temperature, and protection level of the equipment must also be considered. By comprehensively evaluating these factors, it is possible to ensure that the reduction motor and the equipment form the best match and give full play to their performance advantages. ​

Application scenario adaptation of helical gear reduction motors​
The R series helical geared motor has shown wide adaptability in multiple industrial fields due to its efficient and reliable transmission performance. In the metallurgical industry, it can be used in the transmission system of equipment such as rolling mills and continuous casting machines to withstand high-intensity continuous operation; in mining machinery, its high load-bearing capacity can meet the power transmission requirements of heavy equipment such as crushers and conveyors; mixing equipment and reactors in the chemical industry have high requirements for transmission stability and sealing, and the low noise and precision structure of this series of products can just meet such requirements. ​In cement, papermaking, construction and other industries, the R series helical geared motor also plays an important role. The rotary kiln and hoist on the cement production line, the winder and press in papermaking equipment, the crane and concrete mixing station in construction machinery, etc., can all achieve efficient reduction transmission through this series of products. In light industrial fields such as food and plastics, its cleanliness and operational stability can also meet the stringent requirements of production equipment, ensuring the continuity and safety of the production process. ​
