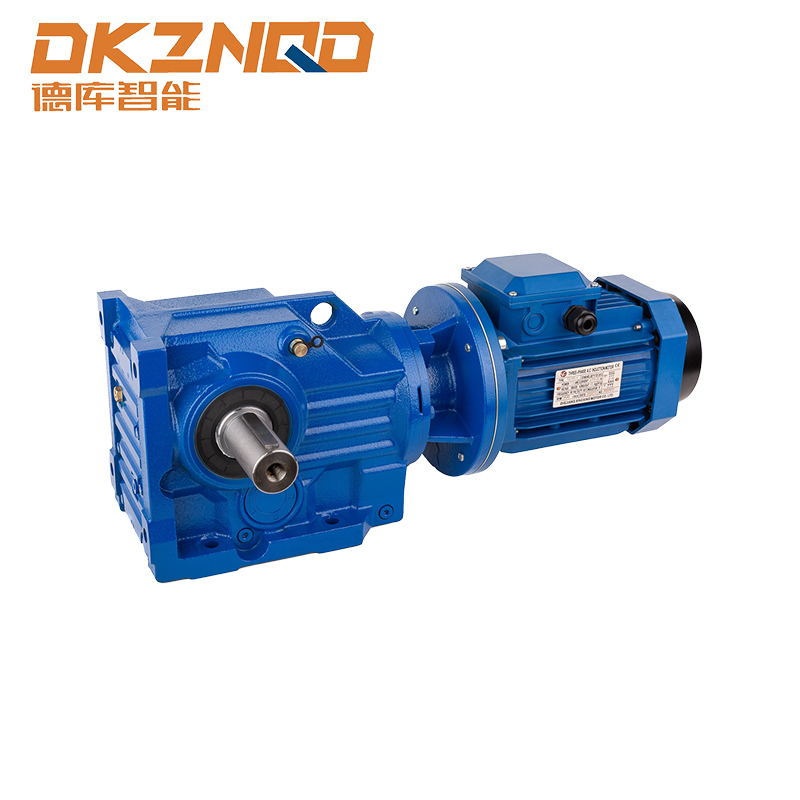

How to optimize the noise control and gear processing accuracy of K series helical bevel gear reducer motors?

In the field of industrial automation, K series helical bevel gear reducer motors are widely used for their efficient and stable transmission performance. However, the noise problem during the operation of the motor and the gear processing accuracy directly affect the reliability and service life of the equipment. In-depth exploration of its noise control and gear processing accuracy optimization methods is of great significance to improving the comprehensive performance of K series reducer motors.
​

1. Analysis of noise influencing factors: gear meshing accuracy, bearing selection and housing stiffness

(I) The key role of gear meshing accuracy

Gear meshing accuracy is one of the core factors affecting the noise of K series helical bevel gear reducer motors. When there is a pitch error and a tooth shape error in the gear, the instantaneous transmission ratio fluctuation when the gear pair is meshed during operation will result. This fluctuation will generate periodic impact loads, which will in turn cause vibration and noise. For example, if the cumulative pitch error of the gear is too large, the meshing impact frequency between the gears will increase significantly at high speeds, forming high-frequency noise, which seriously affects the equipment operation environment. In addition, the contact accuracy of the gears is also crucial. Poor contact will cause local stress concentration, which will not only aggravate gear wear, but also produce abnormal vibration and noise. ​
(II) The decisive influence of bearing selection ​
As a key component supporting rotating parts, the selection of bearings directly affects the noise level of the motor. Different types of bearings have different friction and vibration characteristics during operation. Although rolling bearings have high transmission efficiency, if they are not properly selected, the collision and friction between the rolling elements and the raceways inside them will produce noise. For example, deep groove ball bearings are suitable for general radial load conditions, but if they are used in situations where the axial load is large, it will cause uneven force inside the bearing, resulting in additional vibration and noise. Although sliding bearings perform well at low speeds and heavy loads, they may also cause vibration and noise at high speeds due to the instability of the lubricating oil film. ​
(III) The important role of housing stiffness ​
The stiffness of the motor housing has an important influence on noise propagation and vibration control. If the housing stiffness is insufficient, during the operation of the motor, the vibration generated by the gears and bearings will be amplified and propagated through the housing, thereby exacerbating the noise problem. For example, when a thin-walled shell is subjected to a large dynamic load, it is easy to deform, causing the relative position of the components inside the motor to change, further deteriorating the gear meshing conditions and increasing the noise. In addition, the natural frequency of the shell is also closely related to the noise. When the vibration frequency generated by the motor operation is close to the natural frequency of the shell, it will cause resonance and greatly increase the noise level. ​

2. Noise reduction method: vibration reduction design, tooth surface modification and lubrication optimization​

(I) Application of vibration reduction design​
In order to reduce the noise of the K series helical bevel gear reducer motor, vibration reduction design is an important means. In the installation of the motor, elastic foundation and vibration isolation pads can be used. The elastic foundation can absorb the vibration energy during the operation of the motor and reduce the transmission of vibration to the foundation; the vibration isolation pad isolates the vibration transmission path between the motor and the mounting surface through its own elastic deformation. For example, in some precision equipment with high noise requirements, the use of rubber vibration isolation pads or spring vibration isolators can effectively reduce the impact of motor vibration on the overall equipment. In addition, in the internal structure design of the motor, vibration reduction brackets and damping elements can be added. The vibration damping bracket can change the vibration transmission path inside the motor and disperse the vibration energy; the damping element consumes the vibration energy and reduces the vibration amplitude, thereby achieving the purpose of noise reduction. ​
(II) Tooth surface modification technology​
Tooth surface modification is an effective way to improve the meshing performance of gears and reduce noise. Common tooth surface modifications include tooth profile modification and tooth direction modification. Tooth profile modification changes the meshing start and end positions of the gears by trimming the top and root of the gears, thereby reducing the impact and vibration during gear meshing. For example, proper trimming of the top of the gear teeth can avoid edge contact when the gears enter and exit meshing, so that the load is gradually and smoothly transmitted, thereby reducing noise. Tooth direction modification is to correct the tooth width direction to compensate for the poor contact of the tooth surface caused by manufacturing and installation errors. Through tooth direction modification, the load distribution of the gears during meshing can be made more uniform, local stress concentration can be reduced, and vibration and noise can be reduced. ​
(III) Lubrication optimization strategy​
Reasonable lubrication is an important measure to reduce friction between gears and bearings and reduce noise. Selecting the right lubricant and lubrication method is crucial to the noise control of the motor. For the K series helical bevel gear reducer motor, a lubricant with good lubrication and anti-wear properties should be selected according to the working conditions of the gears and bearings. For example, under high-speed and heavy-load conditions, the use of lubricants with higher viscosity can form a thicker oil film, effectively reducing the friction and wear of the gears and bearings and reducing noise. At the same time, optimizing the lubrication method can also improve the noise reduction effect. Compared with traditional oil immersion lubrication, the use of oil spray lubrication or oil mist lubrication can more accurately deliver lubricants to the meshing parts of gears and bearings, ensure the lubrication effect, and reduce the noise caused by poor lubrication. ​

3. Gear processing accuracy control: grinding, heat treatment and testing standards​

(I) Gear grinding process​
Gear grinding is a key process to ensure gear processing accuracy. In the gear processing of the K series helical bevel gear reducer motor, high-precision grinding technology can effectively improve the gear tooth profile accuracy and tooth surface finish. By using advanced CNC gear grinding machines, grinding parameters such as grinding wheel speed, feed speed and grinding depth can be accurately controlled. For example, during the grinding process, the reasonable adjustment of the dressing parameters of the grinding wheel can ensure the shape accuracy of the grinding wheel, thereby processing a high-precision gear tooth shape. In addition, the grinding process can also correct the tooth direction of the gear to further improve the meshing accuracy of the gear. At the same time, during the grinding process, the use of appropriate coolant can effectively reduce the grinding temperature and reduce the impact of thermal deformation on the accuracy of the gear. ​
(II) Heat treatment deformation control ​
Heat treatment is an important process to improve the strength and wear resistance of gears, but the deformation problem during the heat treatment process will affect the processing accuracy of the gear. In order to control the heat treatment deformation, it is necessary to start from the heat treatment process parameters and the workpiece structure design. In terms of heat treatment process parameters, the reasonable control of heating speed, holding time and cooling speed is the key. For example, the use of slow heating and graded cooling can reduce the thermal stress inside the gear and reduce the deformation. In terms of workpiece structure design, optimizing the structural shape of the gear to avoid sharp corners and thin-walled structures can make the gear more evenly stressed during the heat treatment process and reduce deformation. In addition, after heat treatment, the deformation of the gear can be corrected by methods such as straightening to further improve the accuracy of the gear.​
(III) Inspection standards and methods​
Strict inspection standards and advanced inspection methods are important guarantees for ensuring gear processing accuracy. For the gears of the K series helical bevel gear reducer motor, the items that need to be inspected include tooth profile error, tooth pitch error, tooth direction error, tooth surface finish, etc. At present, the commonly used inspection methods are gear measurement center inspection and three-coordinate measuring instrument inspection. The gear measurement center can quickly and accurately measure various parameters of the gear and generate a detailed inspection report to provide a basis for the control of gear processing accuracy. The three-coordinate measuring instrument can accurately measure the three-dimensional dimensions and form and position errors of the gear, and is suitable for the inspection of complex shapes and position accuracy of gears. By strictly implementing the inspection standards, timely discovering and correcting errors in the gear processing process, the gear processing accuracy can be effectively improved and the performance of the K series reducer motor can be guaranteed.
