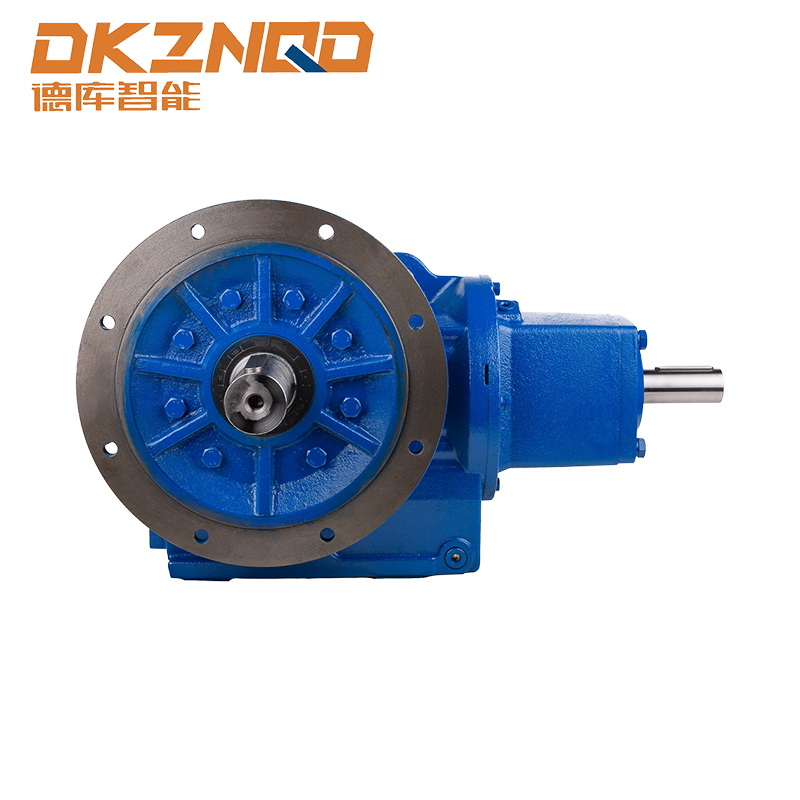

Energy efficiency performance and optimization direction of K series helical bevel gear reducer motor in industrial applications

In the process of modern industrial automation, K series helical bevel gear reducer motor, as a core transmission component, is widely used in transportation, packaging, printing, metallurgy and other fields with its high torque output, compact structure and stable performance. Its energy efficiency performance directly affects the operating cost, energy consumption and production efficiency of industrial equipment.
I. Energy efficiency performance of K series helical bevel gear reducer motor
(I) The positive effect of structural design on energy efficiency
K series reducer motor adopts a transmission structure combining helical gears and bevel gears. This unique design provides it with a good energy efficiency foundation. During the meshing process of helical gears, the gear teeth gradually enter and exit the meshing. Compared with spur gears, the overlap is higher, which makes the load distribution more uniform and reduces the impact and vibration between gears. During the transmission process, the reduction of impact and vibration means the reduction of energy loss, thereby improving the energy efficiency of the motor. The addition of bevel gears enables the reduction motor to achieve motion transmission between spatially staggered axes. In some complex industrial equipment layouts, it can achieve efficient transmission with a more compact structure, avoiding energy loss caused by unreasonable transmission paths.
(II) The impact of materials and manufacturing processes on energy efficiency
The quality of the materials used in motor gears has a key impact on energy efficiency performance. High-quality alloy steel materials, after a reasonable heat treatment process, can improve the hardness, wear resistance and fatigue strength of gears. The friction coefficient of high-hardness gear surfaces is relatively low during mutual meshing, reducing the energy loss caused by friction. Advanced manufacturing processes, such as high-precision cutting and grinding, can ensure that the gear tooth profile accuracy and surface roughness meet high standards. Precise tooth profiles make gear meshing more precise, further reducing energy loss; and good surface roughness can reduce the friction resistance of the gear surface and improve transmission efficiency.
(III) Energy efficiency status in actual industrial applications
In different industrial application scenarios, the energy efficiency performance of K series reduction motors varies. In the field of conveying equipment, such as belt conveyors and chain conveyors, motors need to output power continuously and stably. Under rated load conditions, K series reduction motors can maintain a high level of energy efficiency with their stable transmission performance. However, when abnormal conditions such as material accumulation and overload occur in the conveying equipment, the load of the motor changes and its energy efficiency decreases. In packaging machinery, K series reduction motors often need to start and stop frequently and change speeds. This condition requires high dynamic performance of the motor. During frequent startups, the motor needs to overcome a large inertia, which will consume more energy and affect the overall energy efficiency to a certain extent.
2. K series reduction motor energy efficiency optimization direction
(I) Optimize structural design
Further improving the structural design of K series reduction motors can effectively improve their energy efficiency. For example, optimize the parameter design of gears, reasonably adjust the helix angle and module of helical gears, and the pressure angle and pitch cone angle of bevel gears. Through computer simulation and experimental verification, the optimal parameter combination is found, which can further improve the overlap and load capacity of gears and reduce energy loss during transmission. In addition, in the overall structural layout of the motor, a more reasonable heat dissipation design can be considered. Good heat dissipation can ensure that the temperature inside the motor is within a reasonable range, avoid the performance degradation of components due to excessive temperature, and thus maintain the efficient operation of the motor. For example, increase the number and size of heat dissipation ribs, optimize the design of heat dissipation ducts, etc.
(II) Improve materials and manufacturing processes
The research and development and application of new high-performance materials are important ways to improve the energy efficiency of motors. Finding gear materials with higher strength and lower friction coefficient, such as new powder metallurgy materials or composite materials, can fundamentally reduce the energy loss in the gear transmission process. At the same time, continuously improve the manufacturing process and introduce advanced processing technologies, such as high-precision milling and grinding technology of CNC machining centers, and advanced surface treatment processes, such as laser quenching and ion nitriding. These processes can further improve the accuracy and surface quality of gears, reduce friction and wear, and thus improve the energy efficiency of motors.
(III) Intelligent control and monitoring
The introduction of intelligent control technology can achieve efficient operation of K series reduction motors. The variable frequency speed regulation technology is used to adjust the motor speed in real time according to the actual load changes, so as to avoid the motor running at the rated speed when lightly loaded or unloaded, thereby reducing energy consumption. In addition, the sensor technology and the Internet of Things technology are combined to monitor the running status of the motor in real time, including parameters such as temperature, vibration, current, and speed. By analyzing and processing these data, abnormal conditions during the operation of the motor, such as gear wear and bearing failure, can be discovered in time, and corresponding maintenance measures can be taken in advance to ensure that the motor is always in an efficient operating state. At the same time, based on big data analysis and artificial intelligence algorithms, the energy efficiency of the motor can also be predicted and optimized to provide users with a more scientific and reasonable operation plan.
(IV) Lubrication management optimization
Good lubrication is one of the key factors to ensure the efficient operation of the K series reduction motor. Choose the right lubricant and reasonably select the viscosity, additive composition and other parameters of the lubricant according to the working environment, load conditions and speed of the motor. Regularly lubricate and maintain the motor, and replace aging and failed lubricants in time to ensure the normal operation of the lubrication system. In addition, optimizing the design of the lubrication system, such as using forced lubrication or intelligent lubrication systems, can ensure that lubricating oil is evenly and stably supplied to each transmission component, reduce friction and wear caused by poor lubrication, and improve the energy efficiency of the motor.
The K series helical bevel gear reducer motor has certain energy efficiency advantages in industrial applications, but it also faces the problem of various factors affecting energy efficiency. By optimizing structural design, improving materials and manufacturing processes, introducing intelligent control and monitoring, and optimizing lubrication management, its energy efficiency performance can be effectively improved, providing stronger support for the sustainable development of the industrial field.
