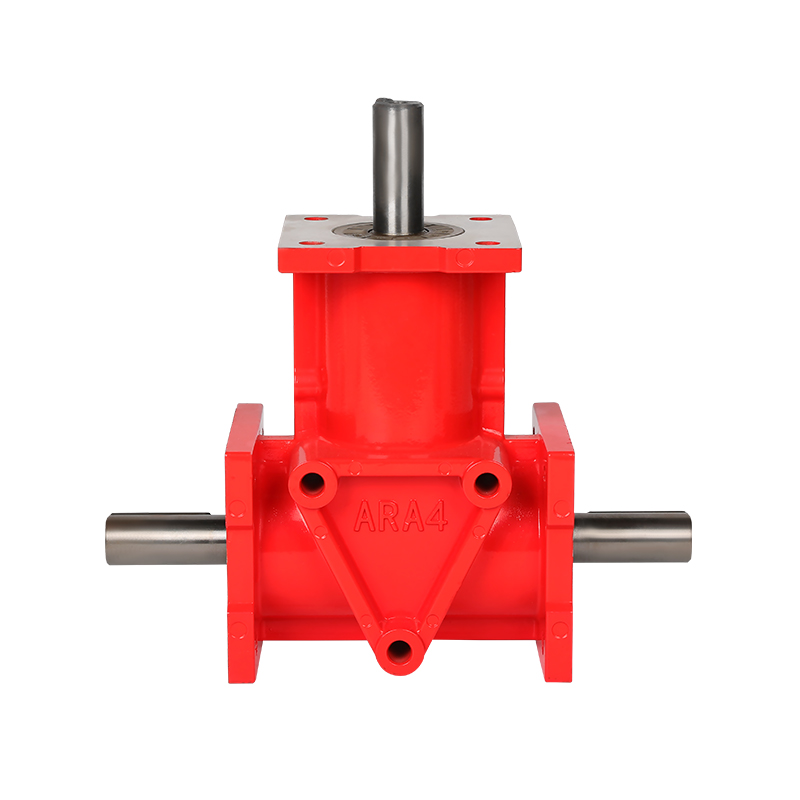

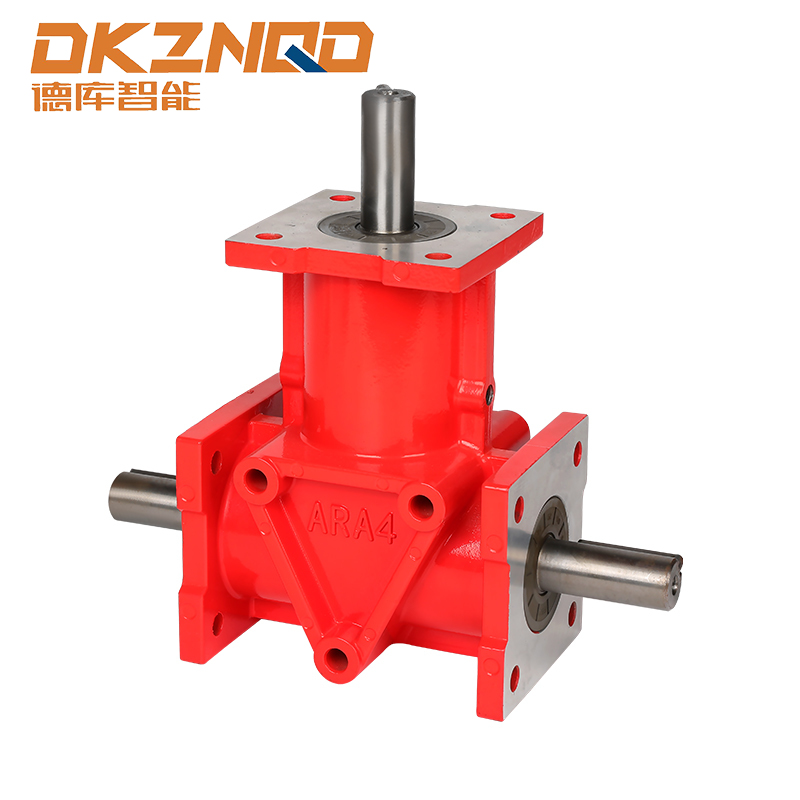

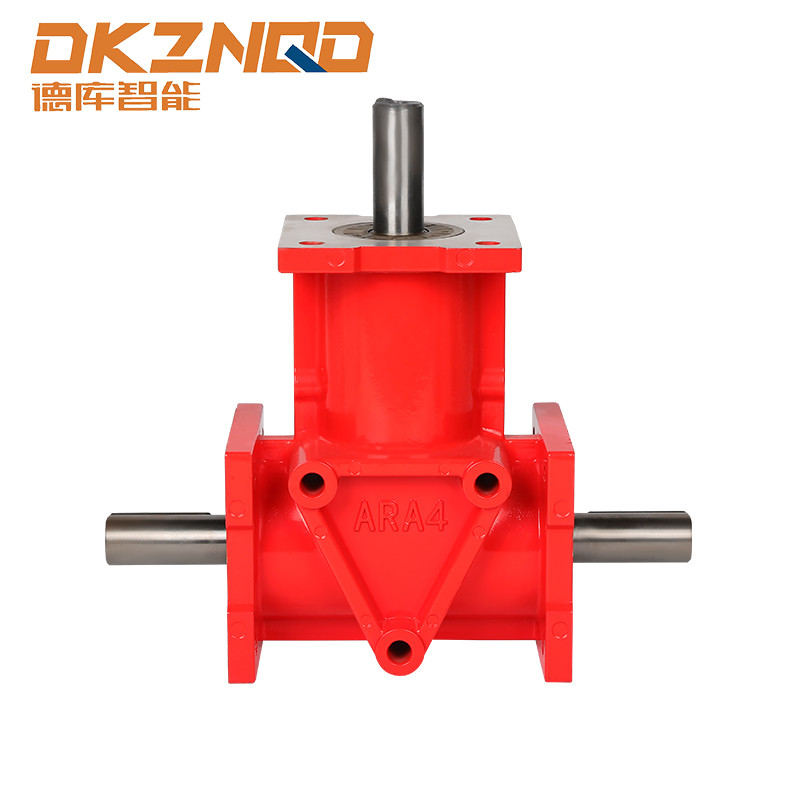

T Series Spiral Bevel Gear Steering Gear Box

The T series spiral bevel gear steering gearbox is a mechanical transmission device whose function is to exchange the rotation course of the input shaft with the aid of 90 degrees so that the rotation course of the output shaft is perpendicular to the rotation path of the input shaft. Bevel gearboxes are extensively used in various mechanical devices, together with machine tools, printing machines, packaging machines, etc.

The working principle of the bevel gearbox is to apply the meshing pressure of the tools to alternate the rotation direction of the input shaft. A bevel gearbox normally includes gears, one is the driving gear and the opposite is the driven gear. The driving gear is connected to the enter shaft, and the driven gear is attached to the output shaft. When the input shaft rotates, the driving gear additionally rotates, causing the driven gear to rotate. Since the wide variety of enamel of the driving gear and the driven gear is unique, their rotation speeds also are different. When the rotation speed of the driving gear is faster than the rotation speed of the passive gear, the passive gear will generate an opposite torque, in order that the rotation direction of the output shaft is perpendicular to the rotation direction of the centre shaft.

Structural functions
The primary additives of a bevel gearbox are the gears and the shaft.
The shape and size of gears may be designed consistent with extraordinary desires.
The shape and size of the shaft also can be designed in step with unique needs.
The connection between the gear and the shaft may be a key connection, a pin connection or an interference fit.
The housing of a bevel gearbox is generally fabricated from cast iron or steel to defend the gears and shafts inside.

Benefit
T series spiral bevel gear steering gear box can obtain excessive-velocity, high-precision commutation.
The bevel gearbox has a simple structure and is easy to preserve.
The bevel gearbox has low noise and a long existence.
Gear commutators can resist larger loads.

A bevel gearbox is a mechanical transmission tool used to alternate the path of power transmission in a mechanical system. It generally consists of two or more gears that mesh with every different to obtain the reversal of power transmission.
