High Efficiency Hypoid Gear Units

Product features:

It adopts hypoid gear transmission, with the advantages of large transmission ratio, high output torque, high efficiency, low noise, lightweight, corrosion resistance, adaptability to harsh environment, modular combination, etc.
Scope of application: widely used in packaging equipment, electroplating equipment, ceramic printing equipment, printing equipment, plastic machinery, hydraulic equipment and other fields.

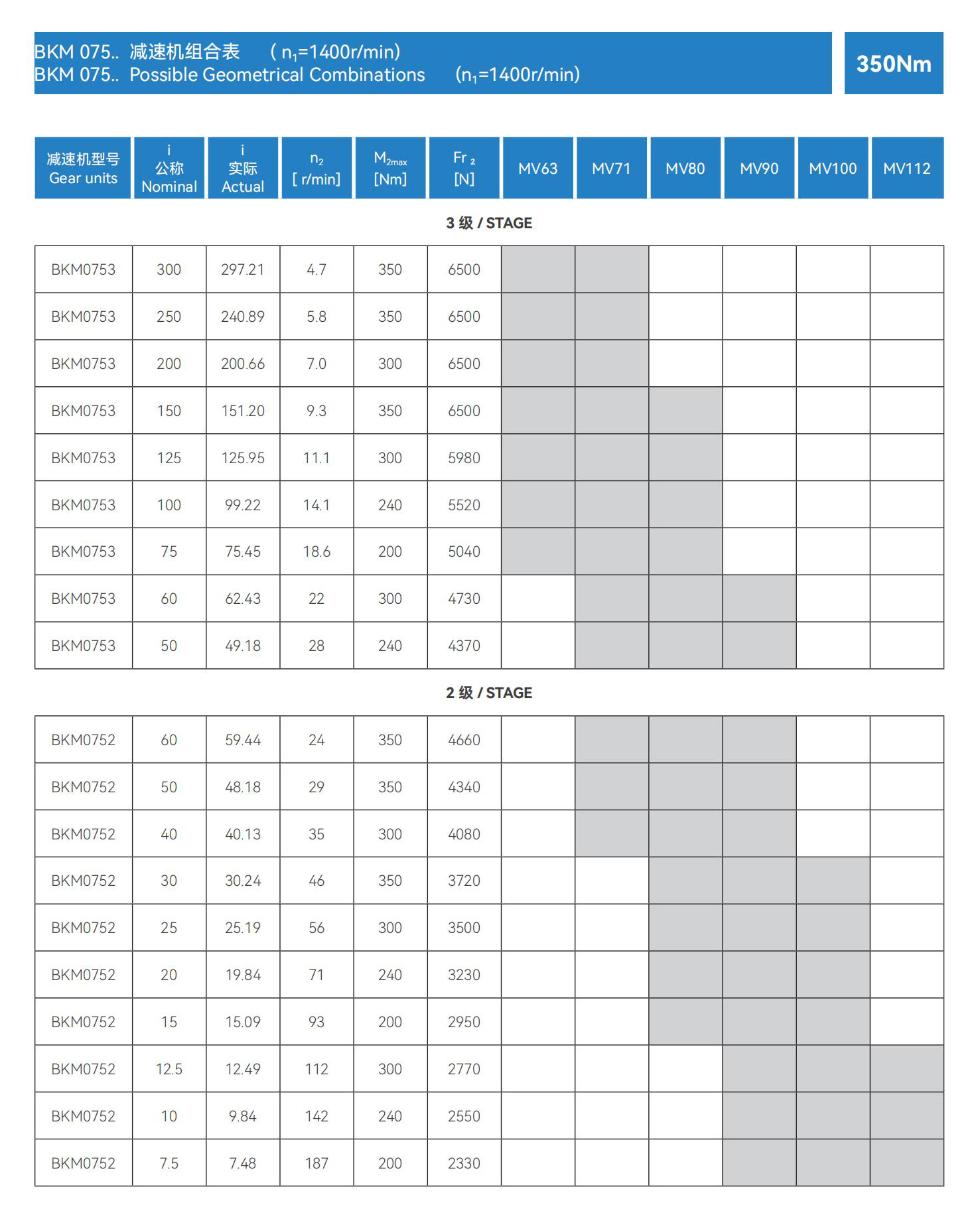

Technical parameters
Transmission ratio: 30.24
Input speed: 1400 r/min
Efficiency: 90% (three-stage transmission efficiency)
Maximum torque: 500 Nm
Power range: 0.18KW-15KW

Design and manufacturing
Material: high-quality aluminum alloy casting housing, worm adopts 20Cr steel, carbon and nitrogen co-penetration treatment, tooth surface hardness HRC60.
Structural features:
Modular design: easy to install and maintain.
Heat dissipation performance: aluminum alloy die-casting box, heat dissipation performance.
Low noise: smooth operation and low noise.
Strong load-bearing capacity: suitable for high-load conditions.

Performance advantages
High transmission efficiency: Compared with worm gear reducers, the transmission efficiency is improved by 10%-40%.
Long life: High-strength materials and optimized design extend the service life.
Low noise: Smooth operation and low noise.
Energy saving and environmental protection: High efficiency and energy saving, in line with green environmental protection requirements.

Application scenarios
Industrial fields: metallurgy, mining, lifting, transportation, cement, construction, chemical industry, textile, printing and dyeing, pharmaceuticals, etc.
Specific applications: packaging equipment, electroplating equipment, ceramic printing equipment, printing equipment, plastic machinery, hydraulic equipment, etc.

Installation and maintenance
Installation form: foot installation or flange installation.
Easy maintenance: Multi-mount installation is easy to use and simple to maintain.
Environmental adaptability: Suitable for harsh environments and can work in a temperature range of -40℃ to 45℃.
