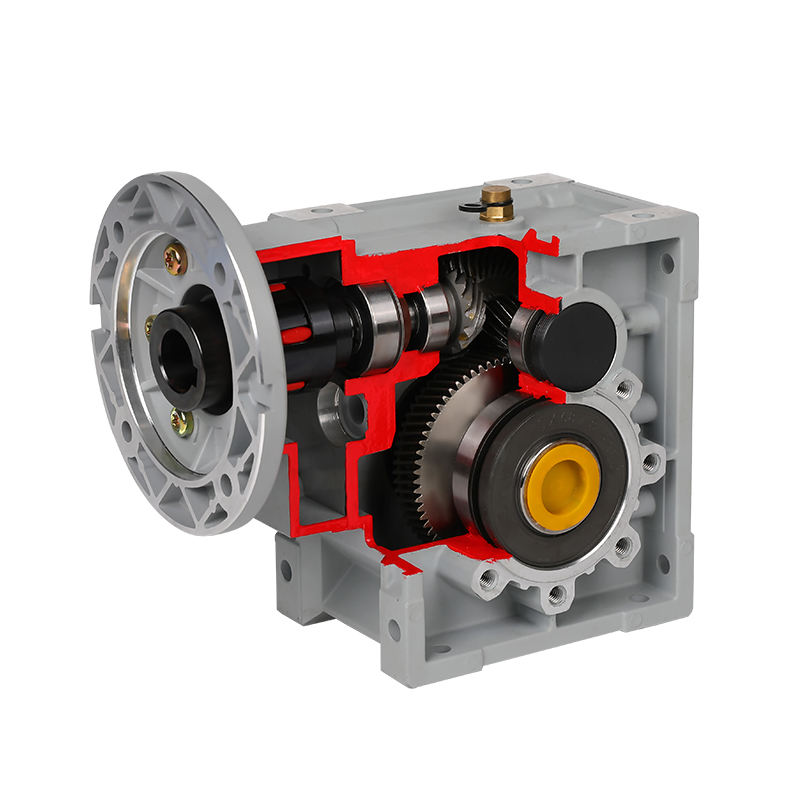

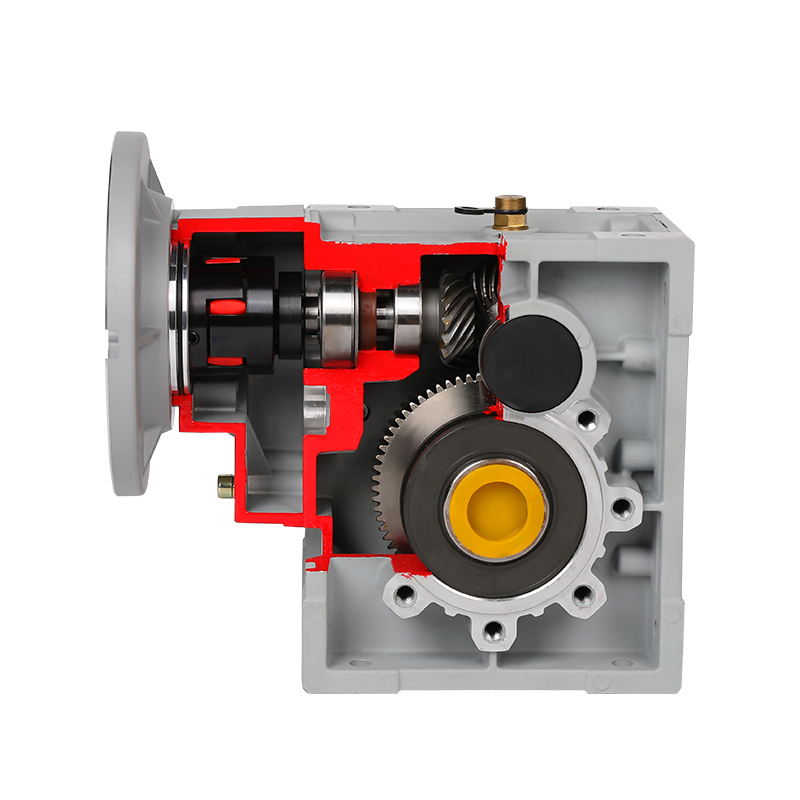

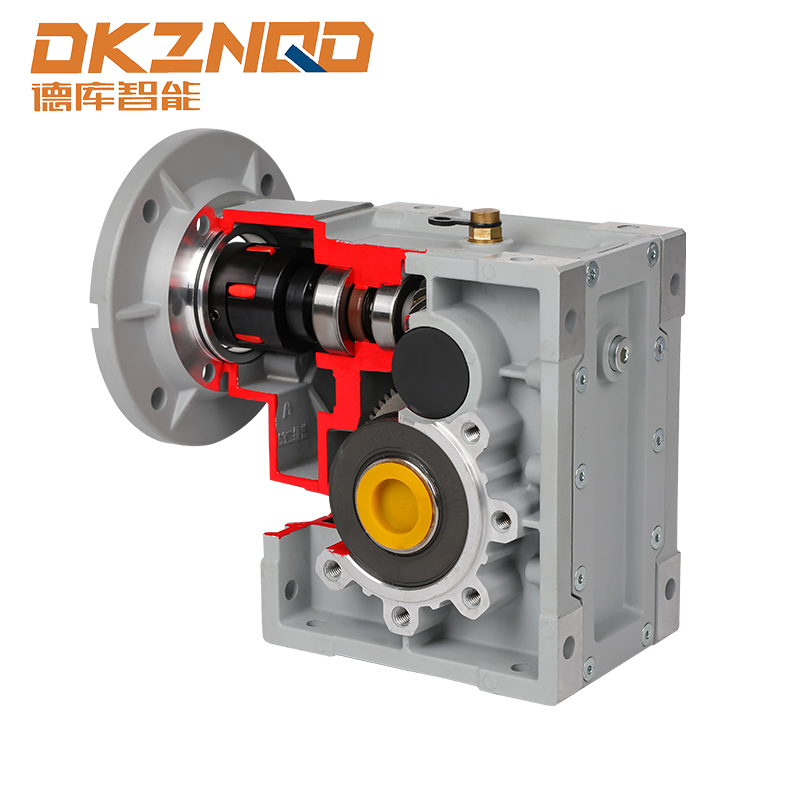

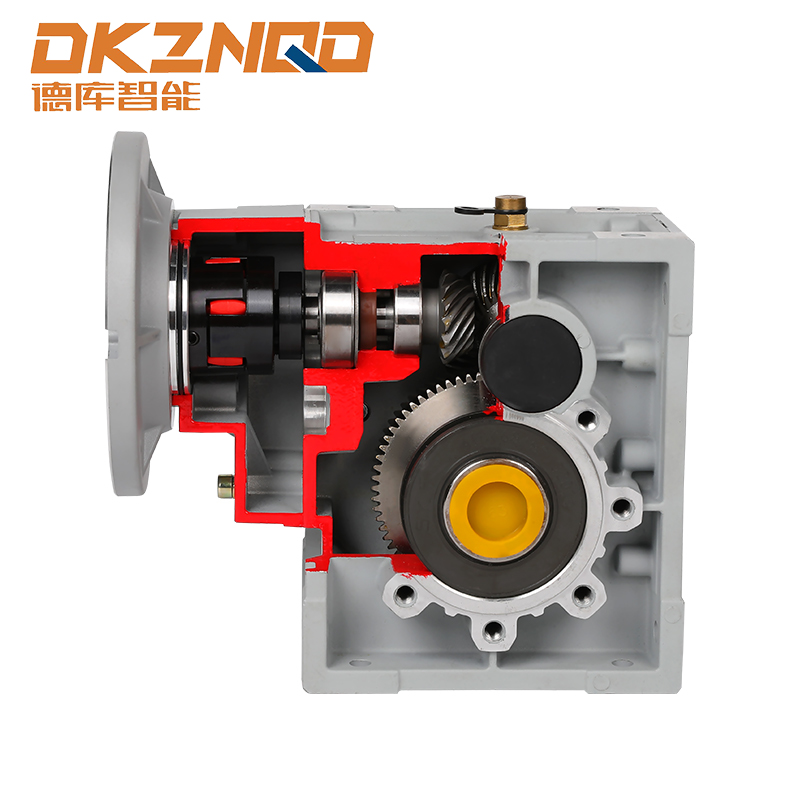

BKM hypoid gear reducer

1. Overview
The hyperboloid gear reducer is a new type of gear reducer that adopts hyperboloid gear transmission technology. It has the blessings of compact shape, high performance, low noise, and lengthy life. It is extensively used in metallurgy, mining, chemical enterprise, constructing materials, and engineering. Heavy, transportation, fabric, papermaking, instrumentation, plastics, rubber, engineering equipment, electricity and other industrial sectors.

2. Working precept
The working principle of the hyperboloid gear reducer is to achieve reduction through the meshing of hypoid gears. The enamel shape of the hypoid gear is a special curve, and its radius of curvature is special at distinct positions, so distinct reduction ratios may be performed. The enter shaft and output shaft of the hypoid gear reducer transmit electricity via the meshing of a pair of hypoid gears. The gear at the input shaft is called the using gear, and the gear on the output shaft is referred to as the passive tool. When the driving gear rotates, its teeth profile meshes with the tooth profile of the passive gear, thereby using the passive gear to rotate and accomplish deceleration.

3. Structural characteristics
The structural traits of the hyperboloid gear reducer are compact shape, high efficiency, low noise, and long lifestyles. Its principal additives encompass the enter shaft, output shaft, hypoid gear, bearings, box, etc. The tooth shape of the hypoid gear is a unique curve, and its radius of curvature is distinctive at specific positions, so different reduction ratios can be accomplished. The tooth form layout of the hypoid gear is reasonable, which may successfully lessen the noise and vibration of the equipment and boom the service lifestyles of the gear. The case of hypoid gear reducer is made of high-strength aluminum alloy material, which has the advantages of mild weight, excessive strength, and right warmth dissipation.

4. Advantages
The hypoid gear reducer has a huge reduction ratio and may attain high-precision reduction.
The hyperboloid gear reducer has a compact shape and might shop space.
The hyperboloid gear reducer has high performance and can improve strength utilization.
The hypoid gear reducer has low noise and can lessen noise pollutants.
The hypoid gear reducer has an extended service lifestyle and can enhance the reliability of the system.

5. Application areas
Hyperboloid gear reducers are widely used in metallurgy, mining, the chemical industry, building substances, lifting, transportation, textile, papermaking, instrumentation, plastics, rubber, engineering machinery, energy, and different business sectors.
