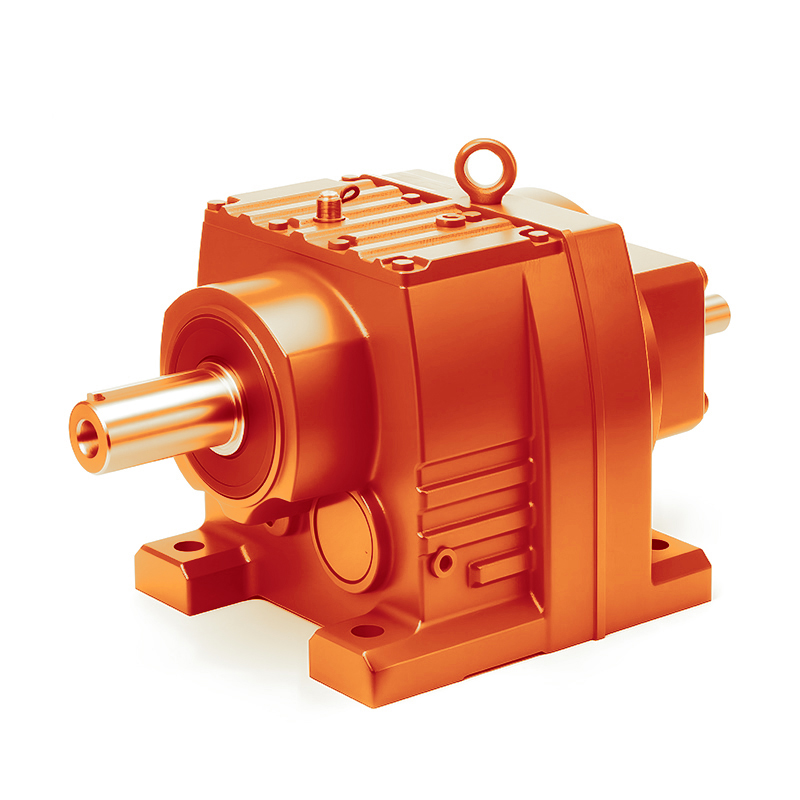

R RF RX Series Helical Solid Shaft Gearbox Gear Unit Speed Reducer

The R RF RX Series is a robust helical solid shaft gearbox designed to meet the most demanding industrial applications. It provides high efficiency and reliability in reducing speed and transmitting torque. The range is engineered to handle a wide variety of power and speed configurations.

Contact Us

Product Type

R

Frame No.

17-167

Rated torque

90-18000N.m

Input Power

0.12-160kw

Speed ​​ratio range

1.3-217.91

Installation Type

M1-M6

Assembly form

Anchor installation, flange installation



Key Features:
• Rated torque range: 90 to 18,000 N.m, offering versatility for different applications.
• Speed ratio range: 1.3 to 217.91, making it adaptable to different operational requirements.
• Available with both anchor and flange mounting options.
• Frame No.: 17-167 for a wide selection of sizes.
• Input power: 0.12 to 160 kW, allowing flexibility for diverse motor integration.

Advantages:
• High torque capacity, suitable for heavy-duty tasks.
• Adjustable speed ratios for precise control over the mechanical output.
• Two installation options (anchor and flange) to fit various machinery types.

Applications:
Commonly used in material handling systems, conveyors, and pumps where high torque and efficiency are critical.

Working Machine Coefficient
Working Machine Daily working hours Working Machine Daily working hours
≤0.5h 0.5-10h >10h ≤0.5h 0.5-10h >10h
Sewage Treatment Thickener (Central Drive) - - 1.2 Metal Processing Reversing Slab Mill - 2.5 2.5
Filter Press 1 1.3 1.5 Reversing Wire Mill - 1.8 1.8
Flocculator 0.8 1 1.3 Reversing Sheet Mill - 2 2
Aerator - 1.8 2 Reversing Plate Mill - 1.8 1.8
Collection Equipment 1 1.2 1.3 Roll Gap Adjustment Drive 0.9 1 -
Longitudinal/Rotary Combined Collector 1 1.3 1.5 Conveying Machinery Bucket Elevator - 1.2 1.5
Pre-thickener - 1.1 1.3 Winch 1.4 1.6 1.6
Screw Pump - 1.3 1.5 Hoist - 1.5 1.8
Water Turbine - - 2 Belt Conveyor < 150kw 1 1.2 1.3
Centrifugal Pump 1 1.2 1.3 Belt Conveyor ≥150kw 1.1 1.3 1.5
Positive Displacement Pump (1 Cylinder) 1.3 1.4 1.8 Freight Elevator* - 1.2 1.5
Positive Displacement Pump (>1 Cylinder) 1.2 1.4 1.5 Passenger Elevator* - 1.5 1.8
Bucket Conveyor - 1.6 1.6 Scraper Conveyor - 1.2 1.5
Tilting Device - 1.3 1.5 Escalator - 1.2 1.4
Caterpillar Travel Gear 1.2 1.6 1.8 Rail Traveling Mechanism - 1.5 -
Bucket Wheel Excavator (for Pickup) - 1.7 1.7 Frequency Conversion Device - 1.8 2
Bucket Wheel Excavator (for Bulk Material) - 2.2 2.2 Reciprocating Compressor - 1.8 1.9
Shredder / Chopper - 2.2 2.2 Hoisting Machinery Slewing Mechanism 1 1.4 1.8
Traveling Mechanism* - 1.4 1.8 Luffing Mechanism 1 1.25 1.5
Plate Bending Machine* - 1 1 Traveling Mechanism 1.5 1.75 2
Chemical Industry Extruder - - 1.6 Hoisting Mechanism 1 1.25 1.5
Slurry Mixer - 1.8 1.8 Jib Crane 1 1.25 1.6
Rubber Calender - 1.5 1.5 Cooling Towers Cooling Tower Fan - - 2
Cooling Drum - 1.3 1.4 Fan (Axial and Centrifugal) - 1.4 1.5
Mixer (Uniform Media) 1 1.3 1.4 Sugar Production Cane Knife* - - 1.7
Mixer (Non-uniform Media) 1.4 1.6 1.7 Cane Mill - - 1.7
Agitator (Uniform Density) 1 1.3 1.5 Beet Sugar Production Beet Slicer - - 1.2
Agitator (Non-uniform Density) 1.2 1.4 1.6 Extractor, Mechanical Refrigerator, Cooker - - 1.4
Agitator (Uneven Gas Absorption) 1.4 1.6 1.8 Beet Washing Machine - - 1.5
Oven / Drying Furnace 1 1.3 1.5 Beet Crusher - - 1.5
Centrifuge 1 1.2 1.3 Paper Machinery Various Types** - 1.8 2
Metal Processing Tilting Machine 1 1 1.2 Pulper Drive 2 2 2
Steel Pusher 1 1.2 1.2 Centrifugal Compressor - 1.4 1.5
Winding Machine - 1.6 1.6 Cableways Freight Cableway - 1.3 1.4
Cooling Bed Cross Transfer - 1.5 1.5 To-and-fro Aerial Ropeway - 1.6 1.8
Roller Straightener - 1.6 1.6 T-bar Lift - 1.3 1.4
Roller Table (Continuous) - 1.5 1.5 Continuous Ropeway - 1.4 1.6
Roller Table (Intermittent) - 2 2 Cement Industry Concrete Mixer - 1.5 1.5
Reversing Tube Mill - 1.8 1.8 Crusher* - 1.2 1.4
Shearing Machine (Continuous)* - 1.5 1.5 Rotary Kiln - - 2
Shearing Machine (Crank Type)* 1 1 1 Tube Mill - - 2
Continuous Casting Drive - 1.4 1.4 Separator - 1.6 1.6
Reversing Roughing Mill - 2.5 2.5 Roller Press - - 2
