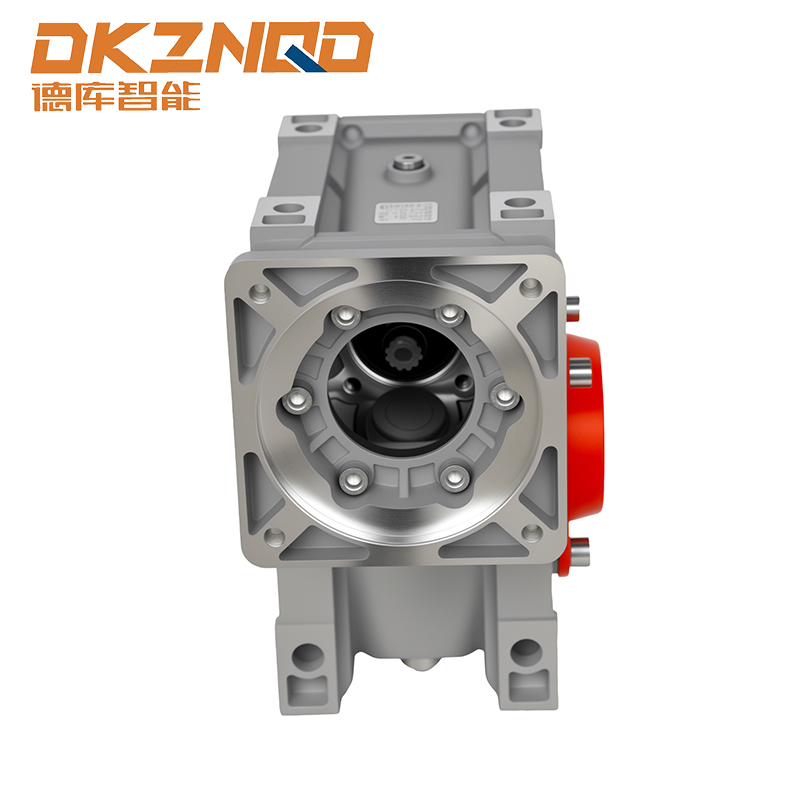

Industrial NMRV Worm Gearbox | Efficient Power Transmission Unit

Our Industrial NMRV Series Worm Gearbox represents the standard in modern power transmission. Engineered for reliability, this unit provides a compact footprint with high shock-load capacity, essential for rigorous B2B manufacturing environments.

Contact Us
Product Type NMRV Ratios[i] 30
Input speed [η1] 1400 Efficiency [η] 60%
Machine base specifications 025-150 Total 10 types Transfer power 60W-15kW
Speed ratio range A single frame has 12 reduction ratios from 5:1 to 100:1

Product Features
Housing: Modern square structure design with multiple mounting points for versatile installation.
Shaft & Bearings: High-tensile steel shafts and premium bearings ensure stable torque transmission and high radial load capacity.
Sealing System: Double-lip oil seals prevent leakage and protect internal components from dust and moisture (IP55/IP65 compliance).
Low Noise Operation: Precision-ground gear teeth significantly reduce friction noise, maintaining a quiet working environment.

Ordering Information
We support various configurations including NMRV (hollow shaft), NRV (solid input shaft), and NMRV+NMRV (double worm) setups. Custom flange dimensions are available upon request.

Working Machine Coefficient
Working Machine Daily working hours Working Machine Daily working hours
≤0.5h 0.5-10h >10h ≤0.5h 0.5-10h >10h
Sewage Treatment Thickener (Central Drive) - - 1.2 Metal Processing Reversing Slab Mill - 2.5 2.5
Filter Press 1 1.3 1.5 Reversing Wire Mill - 1.8 1.8
Flocculator 0.8 1 1.3 Reversing Sheet Mill - 2 2
Aerator - 1.8 2 Reversing Plate Mill - 1.8 1.8
Collection Equipment 1 1.2 1.3 Roll Gap Adjustment Drive 0.9 1 -
Longitudinal/Rotary Combined Collector 1 1.3 1.5 Conveying Machinery Bucket Elevator - 1.2 1.5
Pre-thickener - 1.1 1.3 Winch 1.4 1.6 1.6
Screw Pump - 1.3 1.5 Hoist - 1.5 1.8
Water Turbine - - 2 Belt Conveyor < 150kw 1 1.2 1.3
Centrifugal Pump 1 1.2 1.3 Belt Conveyor ≥150kw 1.1 1.3 1.5
Positive Displacement Pump (1 Cylinder) 1.3 1.4 1.8 Freight Elevator* - 1.2 1.5
Positive Displacement Pump (>1 Cylinder) 1.2 1.4 1.5 Passenger Elevator* - 1.5 1.8
Bucket Conveyor - 1.6 1.6 Scraper Conveyor - 1.2 1.5
Tilting Device - 1.3 1.5 Escalator - 1.2 1.4
Caterpillar Travel Gear 1.2 1.6 1.8 Rail Traveling Mechanism - 1.5 -
Bucket Wheel Excavator (for Pickup) - 1.7 1.7 Frequency Conversion Device - 1.8 2
Bucket Wheel Excavator (for Bulk Material) - 2.2 2.2 Reciprocating Compressor - 1.8 1.9
Shredder / Chopper - 2.2 2.2 Hoisting Machinery Slewing Mechanism 1 1.4 1.8
Traveling Mechanism* - 1.4 1.8 Luffing Mechanism 1 1.25 1.5
Plate Bending Machine* - 1 1 Traveling Mechanism 1.5 1.75 2
Chemical Industry Extruder - - 1.6 Hoisting Mechanism 1 1.25 1.5
Slurry Mixer - 1.8 1.8 Jib Crane 1 1.25 1.6
Rubber Calender - 1.5 1.5 Cooling Towers Cooling Tower Fan - - 2
Cooling Drum - 1.3 1.4 Fan (Axial and Centrifugal) - 1.4 1.5
Mixer (Uniform Media) 1 1.3 1.4 Sugar Production Cane Knife* - - 1.7
Mixer (Non-uniform Media) 1.4 1.6 1.7 Cane Mill - - 1.7
Agitator (Uniform Density) 1 1.3 1.5 Beet Sugar Production Beet Slicer - - 1.2
Agitator (Non-uniform Density) 1.2 1.4 1.6 Extractor, Mechanical Refrigerator, Cooker - - 1.4
Agitator (Uneven Gas Absorption) 1.4 1.6 1.8 Beet Washing Machine - - 1.5
Oven / Drying Furnace 1 1.3 1.5 Beet Crusher - - 1.5
Centrifuge 1 1.2 1.3 Paper Machinery Various Types** - 1.8 2
Metal Processing Tilting Machine 1 1 1.2 Pulper Drive 2 2 2
Steel Pusher 1 1.2 1.2 Centrifugal Compressor - 1.4 1.5
Winding Machine - 1.6 1.6 Cableways Freight Cableway - 1.3 1.4
Cooling Bed Cross Transfer - 1.5 1.5 To-and-fro Aerial Ropeway - 1.6 1.8
Roller Straightener - 1.6 1.6 T-bar Lift - 1.3 1.4
Roller Table (Continuous) - 1.5 1.5 Continuous Ropeway - 1.4 1.6
Roller Table (Intermittent) - 2 2 Cement Industry Concrete Mixer - 1.5 1.5
Reversing Tube Mill - 1.8 1.8 Crusher* - 1.2 1.4
Shearing Machine (Continuous)* - 1.5 1.5 Rotary Kiln - - 2
Shearing Machine (Crank Type)* 1 1 1 Tube Mill - - 2
Continuous Casting Drive - 1.4 1.4 Separator - 1.6 1.6
Reversing Roughing Mill - 2.5 2.5 Roller Press - - 2

The NMRV Series Double RV Configuration Worm Gearbox provides a high-performance, cost-effective, and customizable solution for power transmission in a wide variety of industries. Its robust construction, self-locking capabilities, and diverse speed ratio options make it an ideal choice for applications that demand precision, efficiency, and reliability. Whether you need it for material handling, automated machinery, or other industrial applications, the NMRV Series gearbox delivers superior performance and durability.
