S Series Foot-mounted Helical Worm Gearmotor

Product Overview
The S series helical gear-worm reducer is an efficient and compact transmission device that combines the transmission technology of helical gears and worm gears, and has the characteristics of high transmission efficiency, large torque transmission capacity and long life. This series of reducers adopts optimized design and reasonable structure, and is suitable for a variety of installation methods, including foot installation, hollow shaft installation, flange installation, etc., to meet the needs of different equipment.

Technical Features
High transmission efficiency:
The S series reducer adopts a combination of helical gears and worm gears, with a transmission efficiency of more than 95%, which is much higher than that of single-stage worm gear reducers.
Through optimized design, friction loss is reduced and the overall transmission efficiency is improved.

High torque transmission capacity:
The reducer is made of high-strength materials, such as 20CrMnTi alloy steel, and undergoes special heat treatment to ensure the wear resistance and load-bearing capacity of gears and worms.
High load-bearing capacity, suitable for heavy-duty conditions, and a wide output torque range, ranging from 90N·m to 4000N·m.

Multiple installation methods:

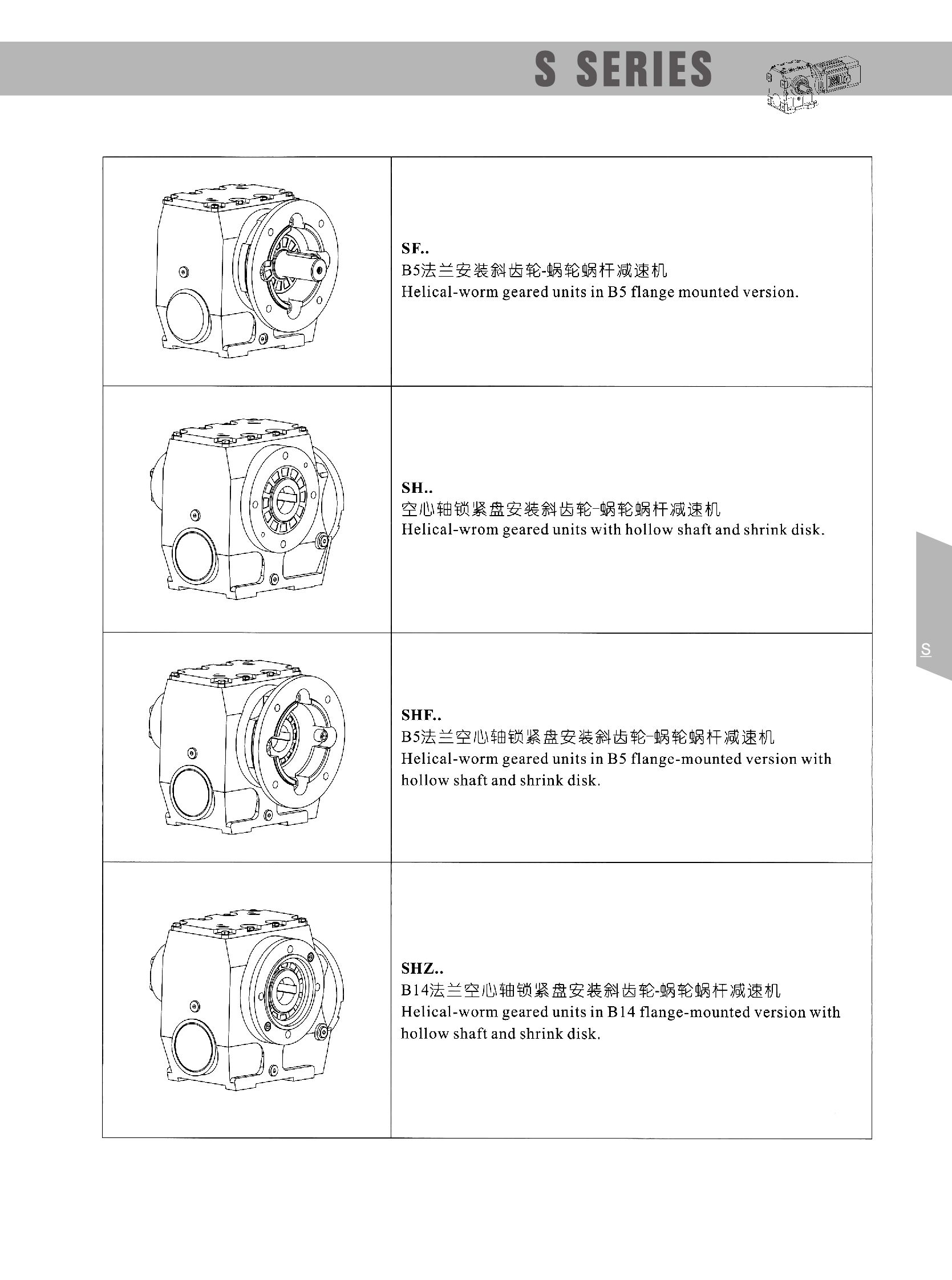

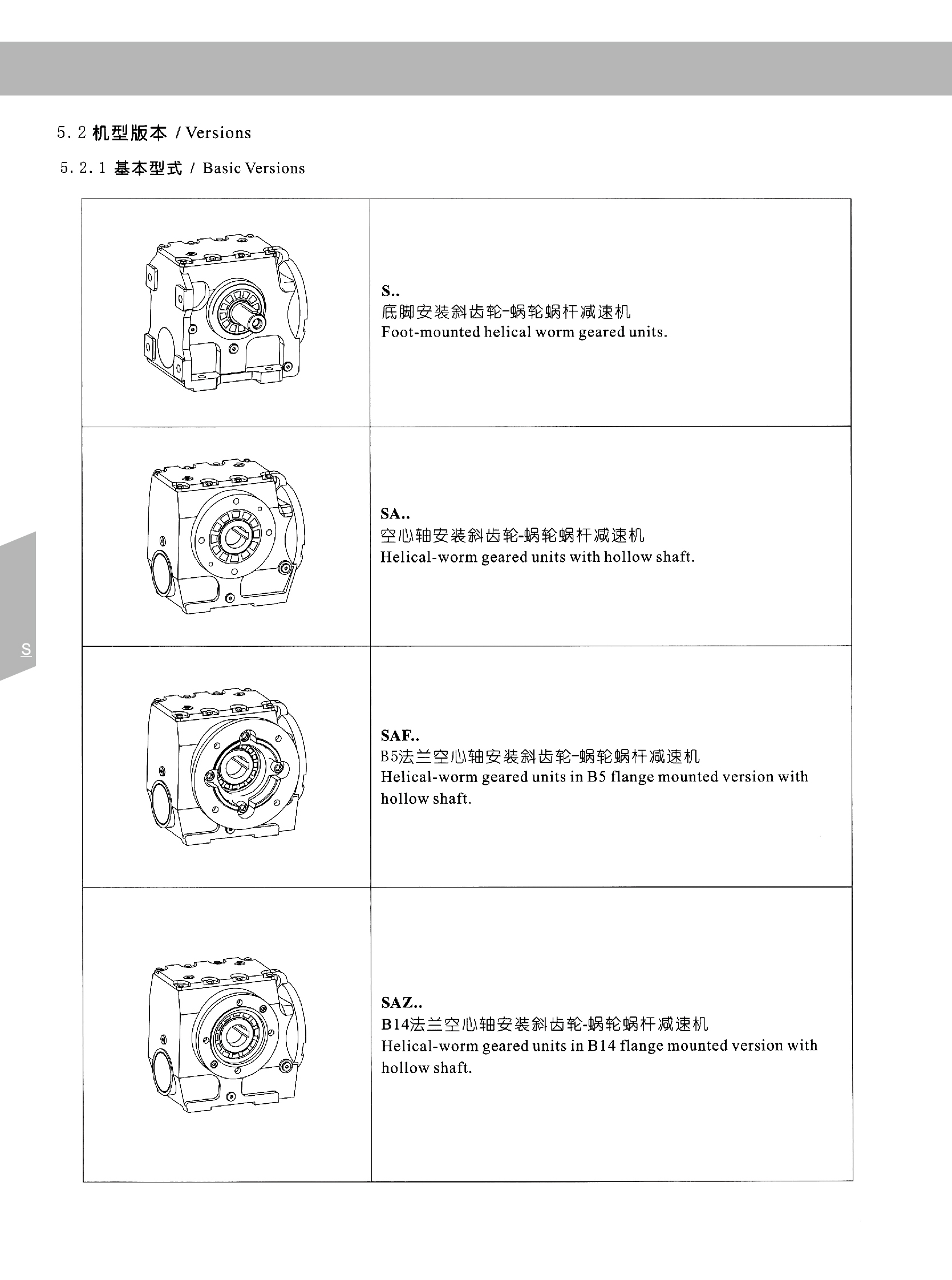

Supports multiple installation methods such as foot installation, hollow shaft installation, flange installation, etc. to meet different equipment requirements.
Suitable for multiple application scenarios such as right-angle output and shaft-mounted output, flexible and convenient.

Low noise and high stability:
The reducer adopts precision machining technology, and the gear grinding accuracy reaches 6-5 degrees, ensuring smooth transmission and low noise.
Compact structure, small size, light weight, easy installation and maintenance.

Wide application fields:
Applicable to petrochemical equipment, mining machinery, printing and packaging equipment, conveying equipment, food machinery, textile machinery and other industries.
Particularly suitable for occasions that require frequent start and stop, such as conveyor belt drive, mixing equipment, etc.

Product advantages
High efficiency and energy saving:
High transmission efficiency and low energy consumption design, saving energy and reducing operating costs.
Applicable to industrial scenarios that require energy saving and consumption reduction, such as automated production lines, logistics warehousing, etc.
High reliability:
Key components are made of high wear-resistant materials and undergo special heat treatment to ensure long service life.
Applicable to harsh working conditions, such as high temperature, low temperature, humidity and other environments.
Easy maintenance:
Simple structure, easy maintenance, no need to frequently replace parts.
Provide a variety of installation methods and configuration options, which can be customized according to customer needs.
Modular design:
Highly modular design, strong versatility, easy to integrate with other equipment.

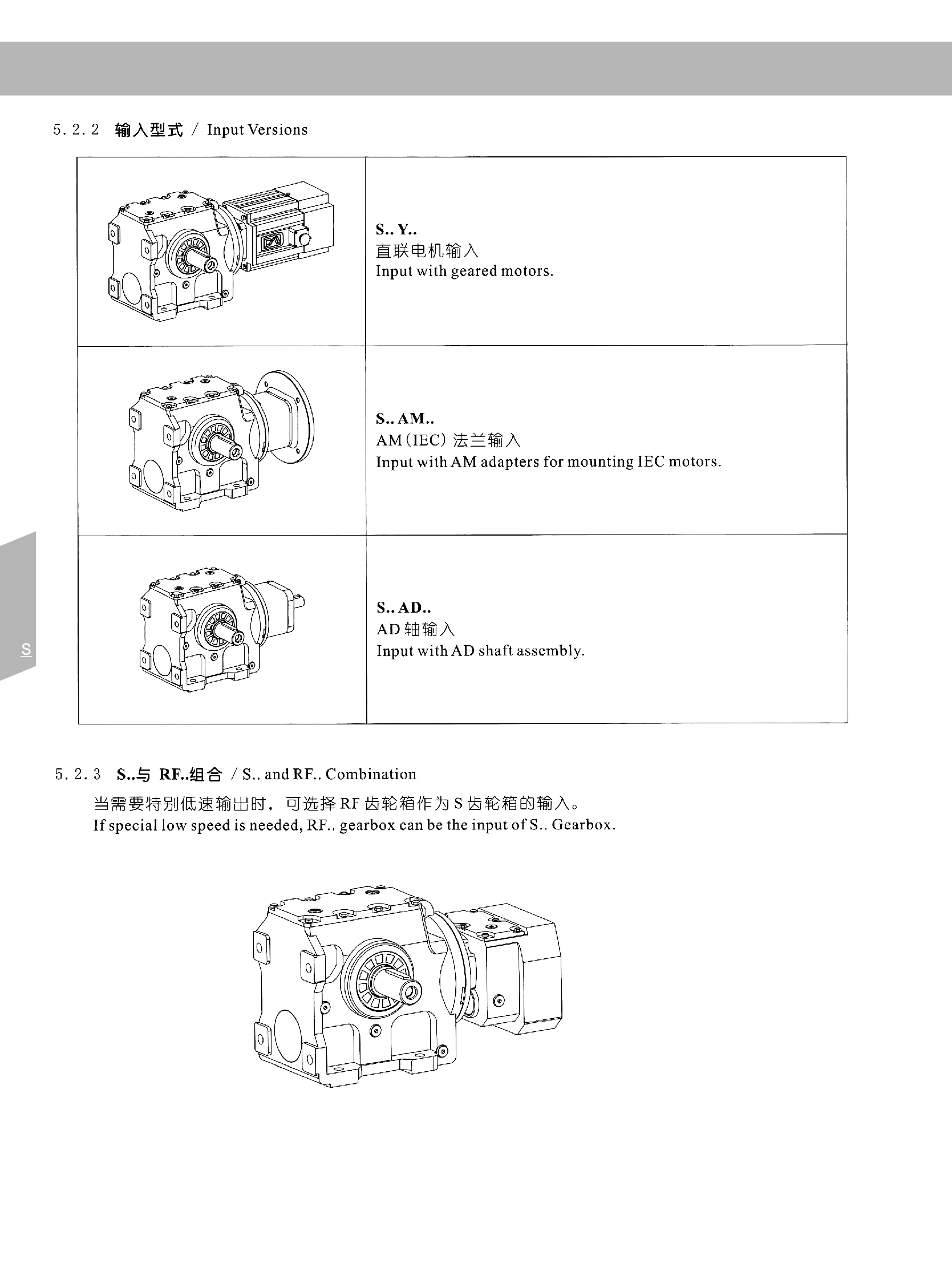

Can be used with various types of motors to achieve mechatronics.
