HK Series Worm Gear Screw Lifter

HK series worm screw lifts are widely used in many industries such as machinery, metallurgy, construction, water conservancy, chemical industry, and medical treatment. This series of products is characterized by compact structure, small size, light weight, easy installation, flexible use, and diverse functions. HK series worm screw lifts adopt a combination of worm gear transmission and screw drive.
Main features:

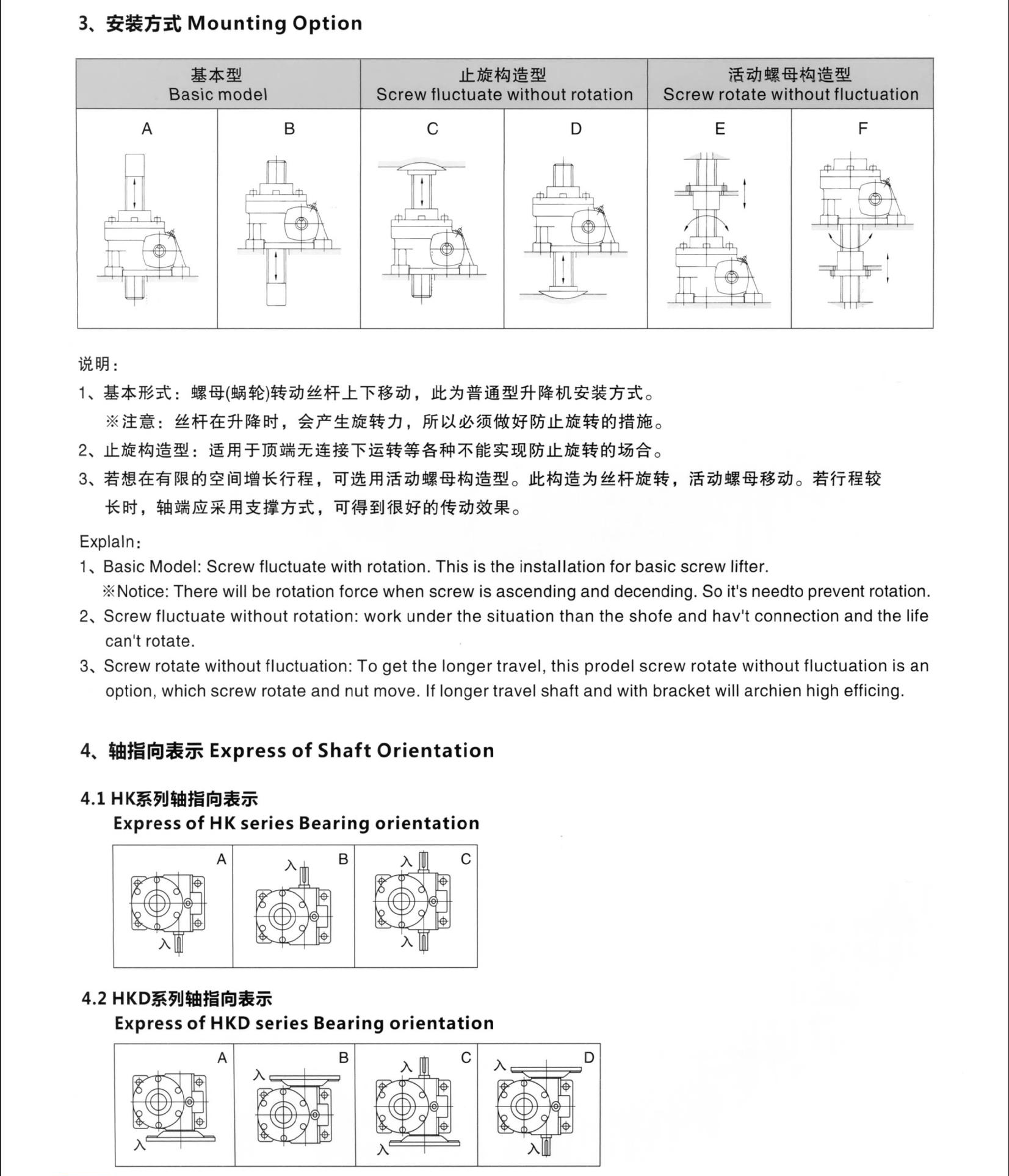

Various structural forms: The products are divided into type 1 and type 2 structures. Type 1 is the rotation of the nut and the axial movement of the screw; type 2 is the rotation of the screw and the axial movement of the nut. The assembly types are type A and type B, corresponding to the upward (downward) movement of the nut (screw) respectively.
Various screw head types: The screw head can be cylindrical, flange, threaded, and flat head to meet the needs of different application scenarios.
Self-locking function: The screw has a self-locking function, which can maintain the load even without a braking device to ensure safe operation.
Anti-rotation and protection function: The screw anti-rotation and protection function are divided into basic type, anti-rotation type, and protective cover type, which can be selected according to customer needs.
Optional axial direction: The axial direction can be selected in A, B or C direction, which is convenient for users to adjust according to actual needs.
Customized lifting stroke: Users can customize the lifting stroke according to actual needs, ranging from 100mm to 1500mm.
Diverse power sources: The lift can be operated manually or driven by an electric motor or other power sources, suitable for a variety of working environments.
Long-life design: The core components are made of high-quality materials, such as the worm gear made of tin bronze, which has a long service life.
HK series worm screw lifts are not only suitable for low-speed and heavy-load occasions, but also widely used in environments that require frequent operations.
